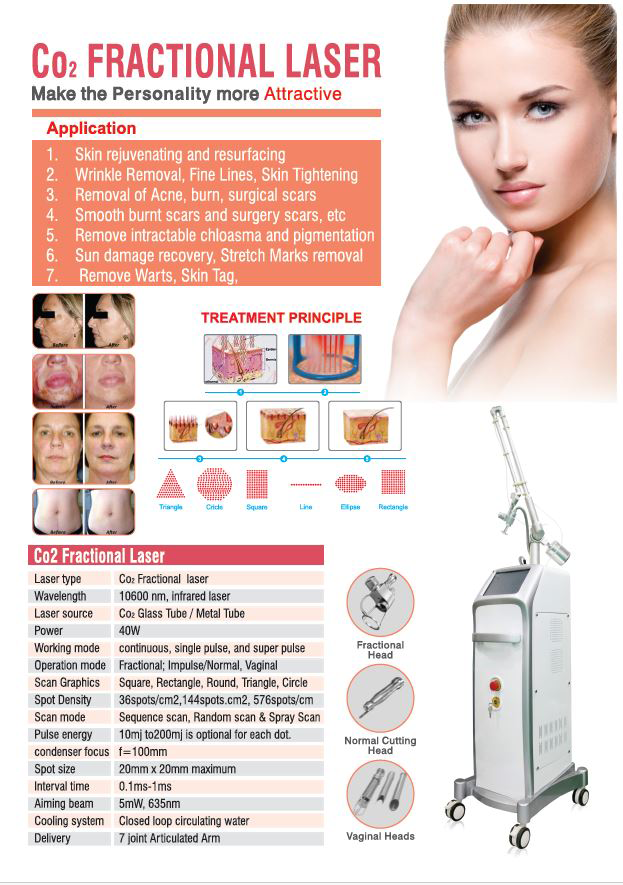

TECHNICAL SPECIFICATIONS
Laser Type	Fractional Co2 Laser
Wavelength	10.6 um, infrared laser
Laser Source	Co2 Glass Tube/Metal RF Tube(optional)
Power	40W
Working mode	Continuous
Scan Graphics	Square, rectangle, round and customized
Spot Density	36 sports/cm2, 144 spots/cm2, 576 spots/cm
Scan Mode	Sequence scan, Random scan & Spray Scan
Pulse Engery	10 mj to 200 mj is optional for each dot
Condenser Focus	f = 100 mm
Spot Size	20 mm x 20 mm maximum
Interval Time	0.1 ms - 1 ms
Aiming beam	5 mW, 635 nm
Cooling System	Closed loop circulating water
Net Weight/G.Weight	50 KG/60 KG
Dimensions	550 mm x 750 mm x 1150 mm, 7 Joint Articulated Arm
