LASERS & IPLs

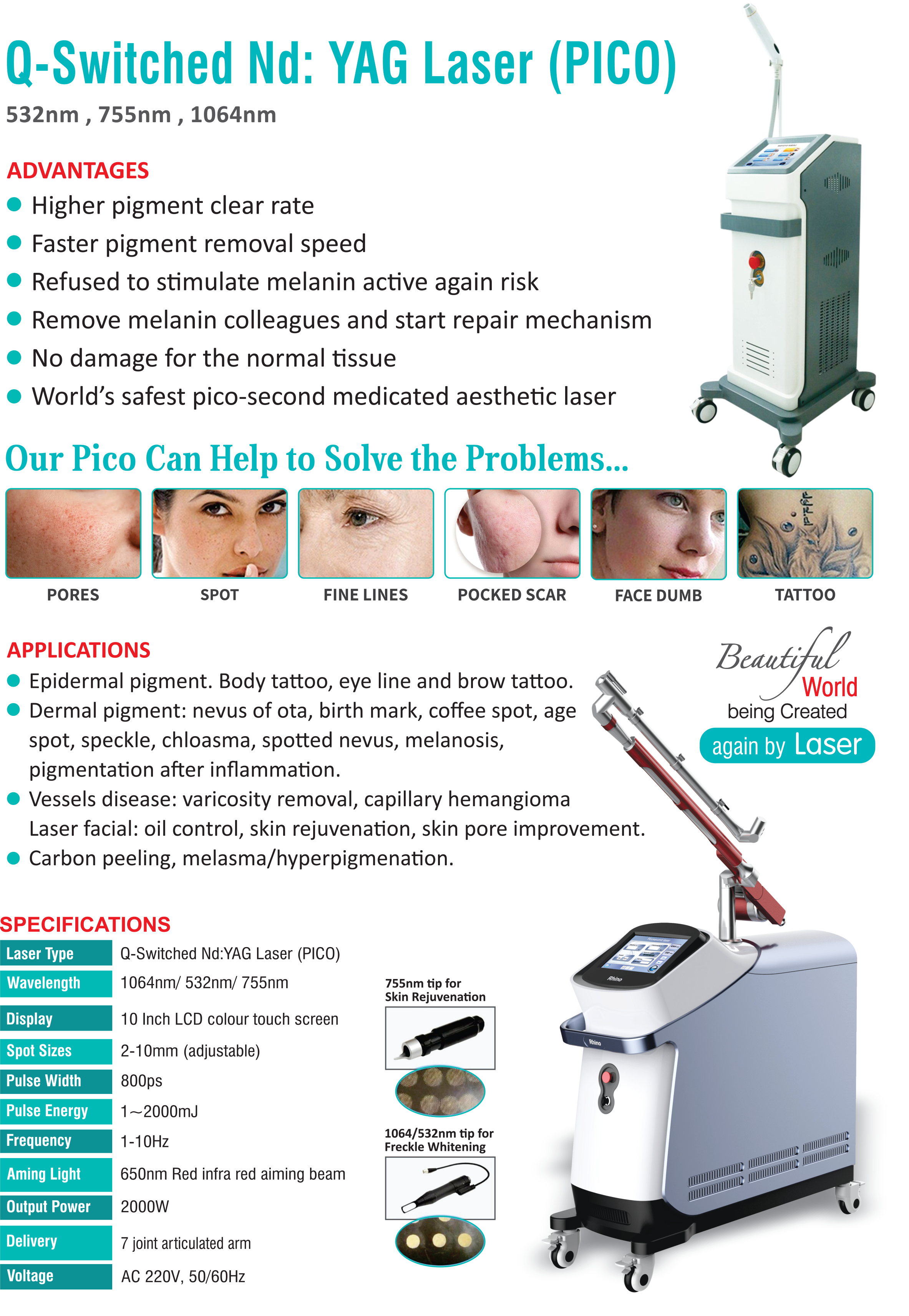

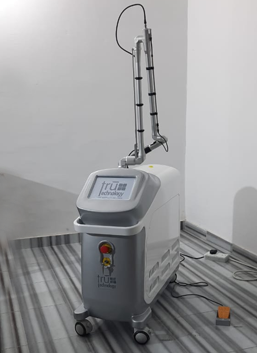

Q Switch Nd.YAG (PICO)
532nm,755nm,1064nm
Applications
- Acne Therapy
- Vascular Therapy
- Wrinkle Reduction
- Pigmentation
- Skin Rejuvenation
- Tattoo Removal
- Carbon Peeling
- Melasma Removal
- Birth Mark Removal
- Hair Bleaching
- Spotted Nevus
Download Brochure Download Brochure Download Brochure
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Laser Source | Q-Switch Nd.YAG Laser (PICO) |
| Wavelength | 1064nm, 532nm, 755nm |
| Output Energy | 1064nm: 100-1500mj; 532nm: 100-600mj |
| Energy Density (max) | 1064nm: 15mJ/cm2; 532nm: 6J/cm2 |
| Pulse Energy | 1-2000mj |
| Pulse Duration | 8ns |
| Repetition Rate | 1-10Hz adjustable |
| Spot Size | 2-10mm (adjustable) |
| Display Size | 10.4" TFT Color Touch Display |
| Ligth Guide Beam | 650nm red laser |
| Cooling System | Closed Circle Water to Air Heat Exchanger |
| Laser delivery | 7 jointed articulated arm |
| Power Requirement | 220V, 10A, 50-60Hz; 110V,10A, 50-60Hz |
